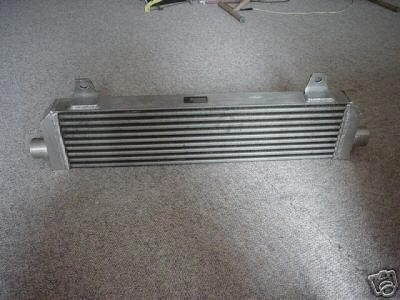

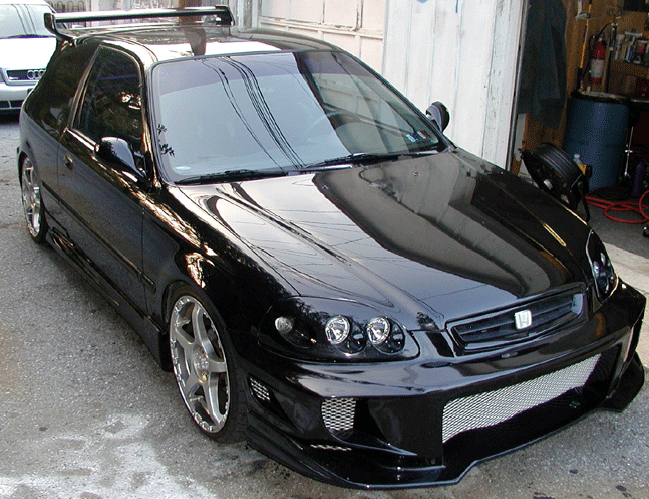

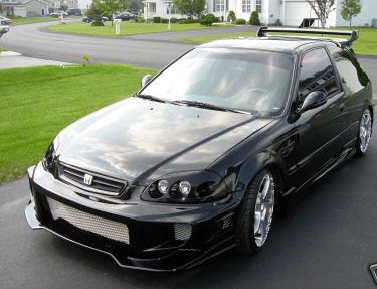

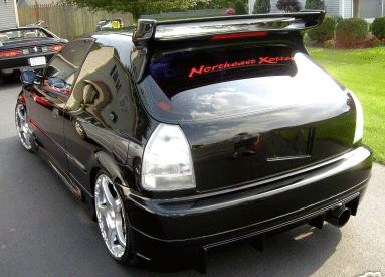

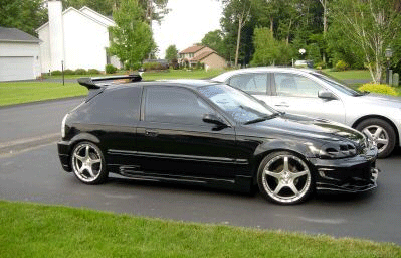

Go to Project PicturesThis is Jim's Civic Hatchback, it's a 1996 DX D16Y SOHC.. Soon to be 1.6 Litre Turbocharged 30" Wide Intercooler havin' 300hp+ Civic Racer.. Check out the intercooler I ordered below.. Big is the word..
Trust me this thing is fucking Big!!! Just the cooling section alone is 30" Wide by 7.5" High!!! This thing is good for some serious HP!!! I just hope it's good enough...

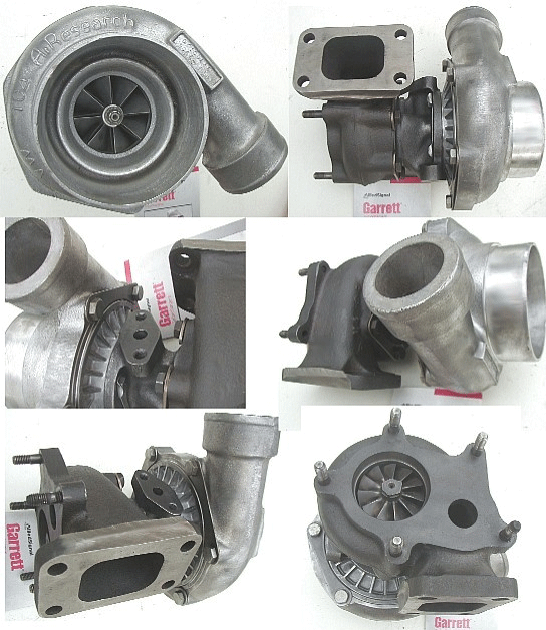

The turbo for my car is a Garrett/Turbonetics T3/60-1 T04S w/ .70 Compressor a/r and .48 turbine a/r.. It will spool quick yet remain consistent until redline with no real power drop. This turbo can supply up to 500hp.
This is my Greddy Blow Off Valve, it is a Type S BOV..

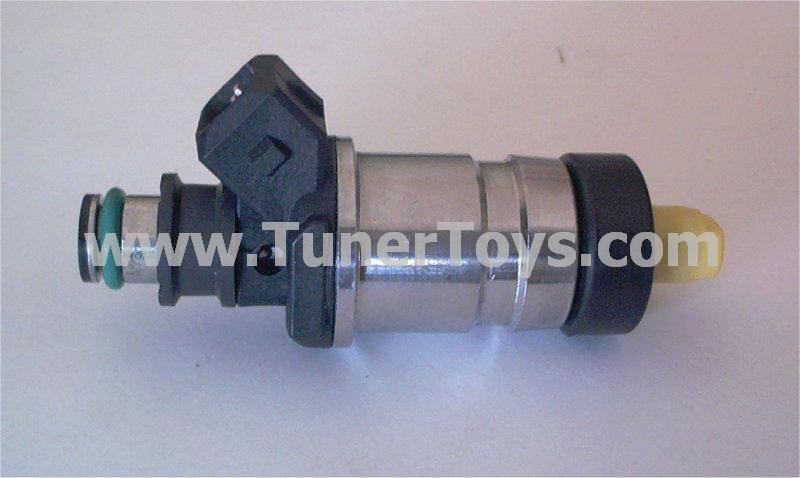

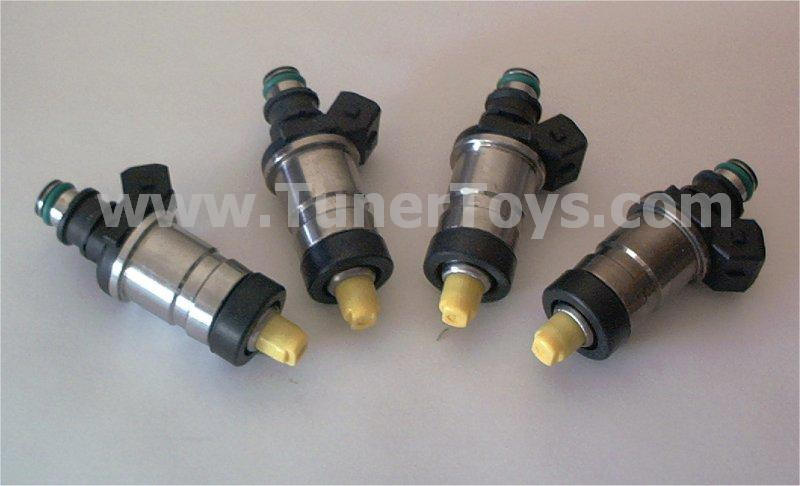

These are my Injectors that I ordered from Craig at www.TunerToys.com they are listed by Craig as 450cc injectors, but that rating is at 80% duty cycle so realistically they are 550cc at 100% duty cycle.

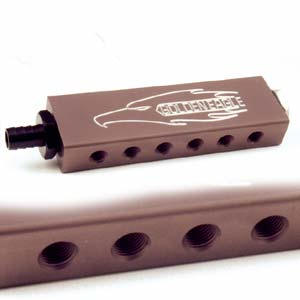

This is my Vacuum manifold I also got from Craig, it allows multiple vacuum sources to be hooked up to one main source instead of "T-ing" off a main line a bunch of times so as to have enough lines for all components.

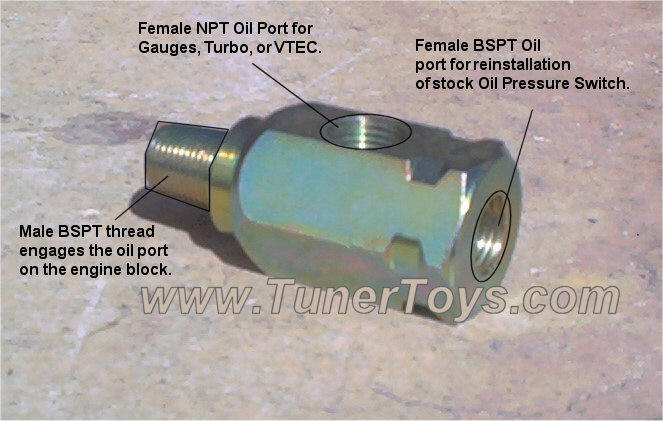

This the oil take off valve for supplying oil to the Turbo. This fits factory Honda oil pressure switch locations, but give you 2 extra outs for the turbo supply line and for an oil pressure line. I also got a oil pressure regulator for the turbo, but I did not get/take a picture of it yet. You can guess where I got it from...
Just got my Custom Log Style Turbo Manifold from Thano (shitbird on www.homemadeturbo.com)
